Sony BDP-S300 Blu-Ray Player - Some photos from inside         State: 08-Oct-2007

You can select several pictures:

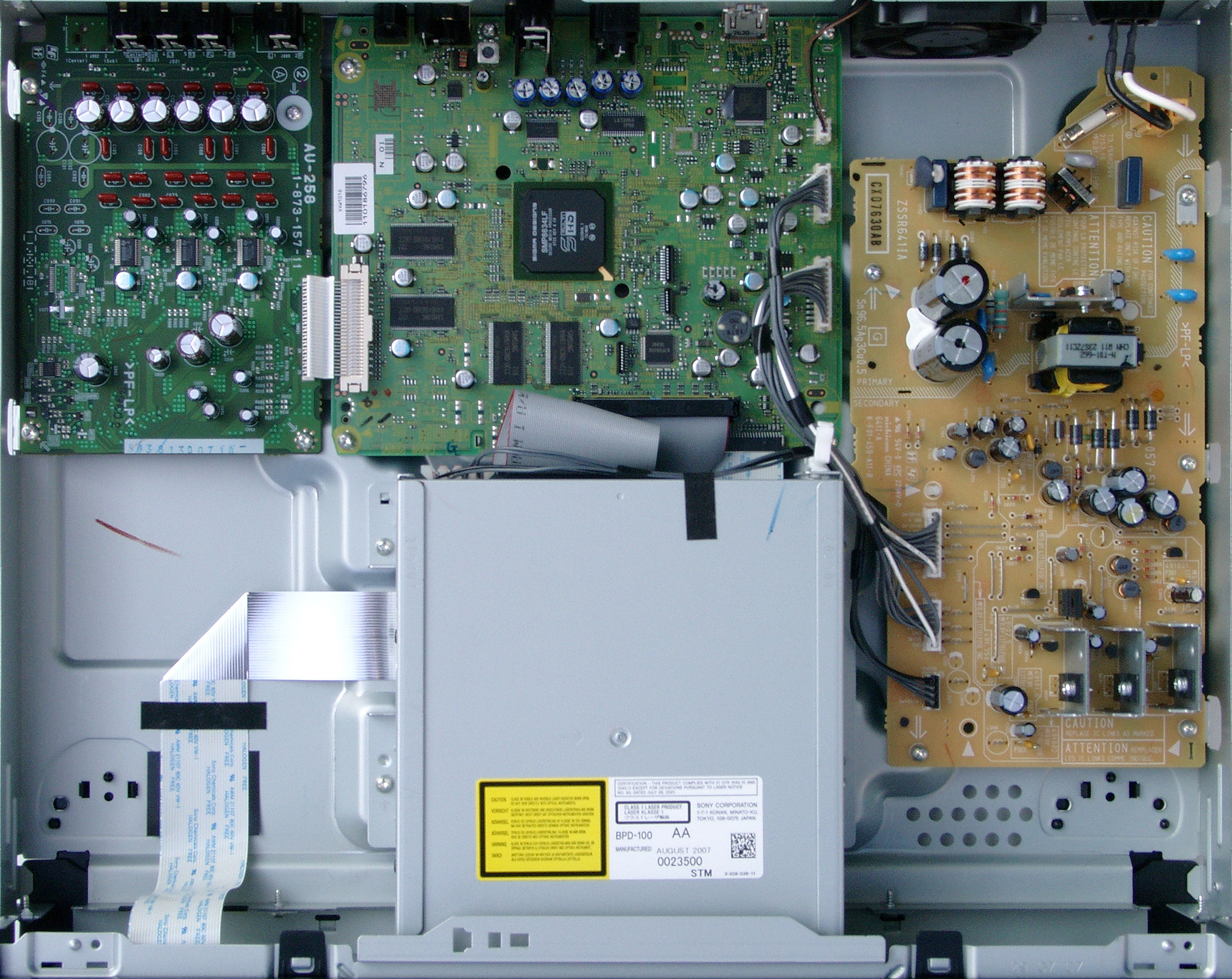

Overview (1058kB)
Front side (661kB)

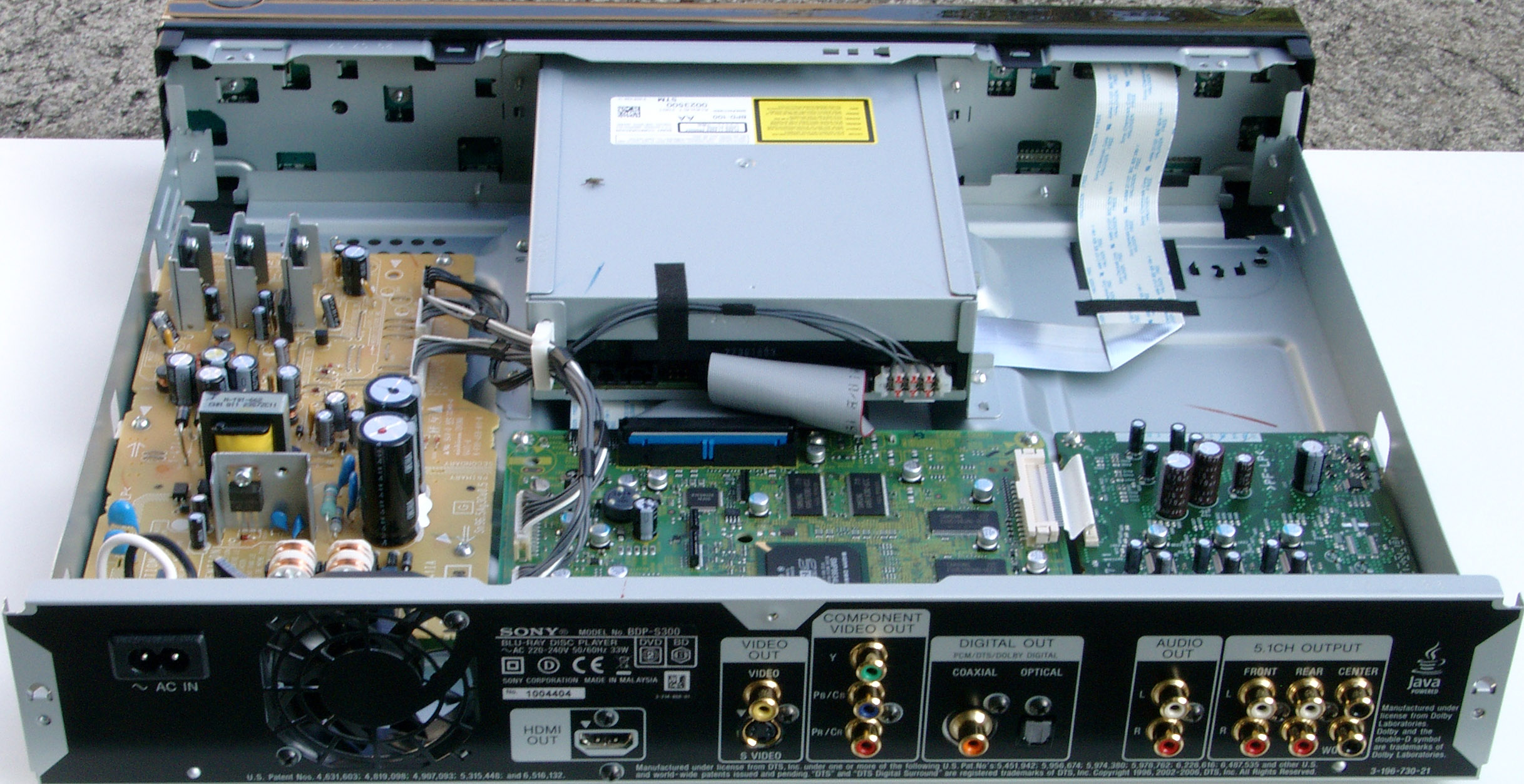

Back side (634kB)

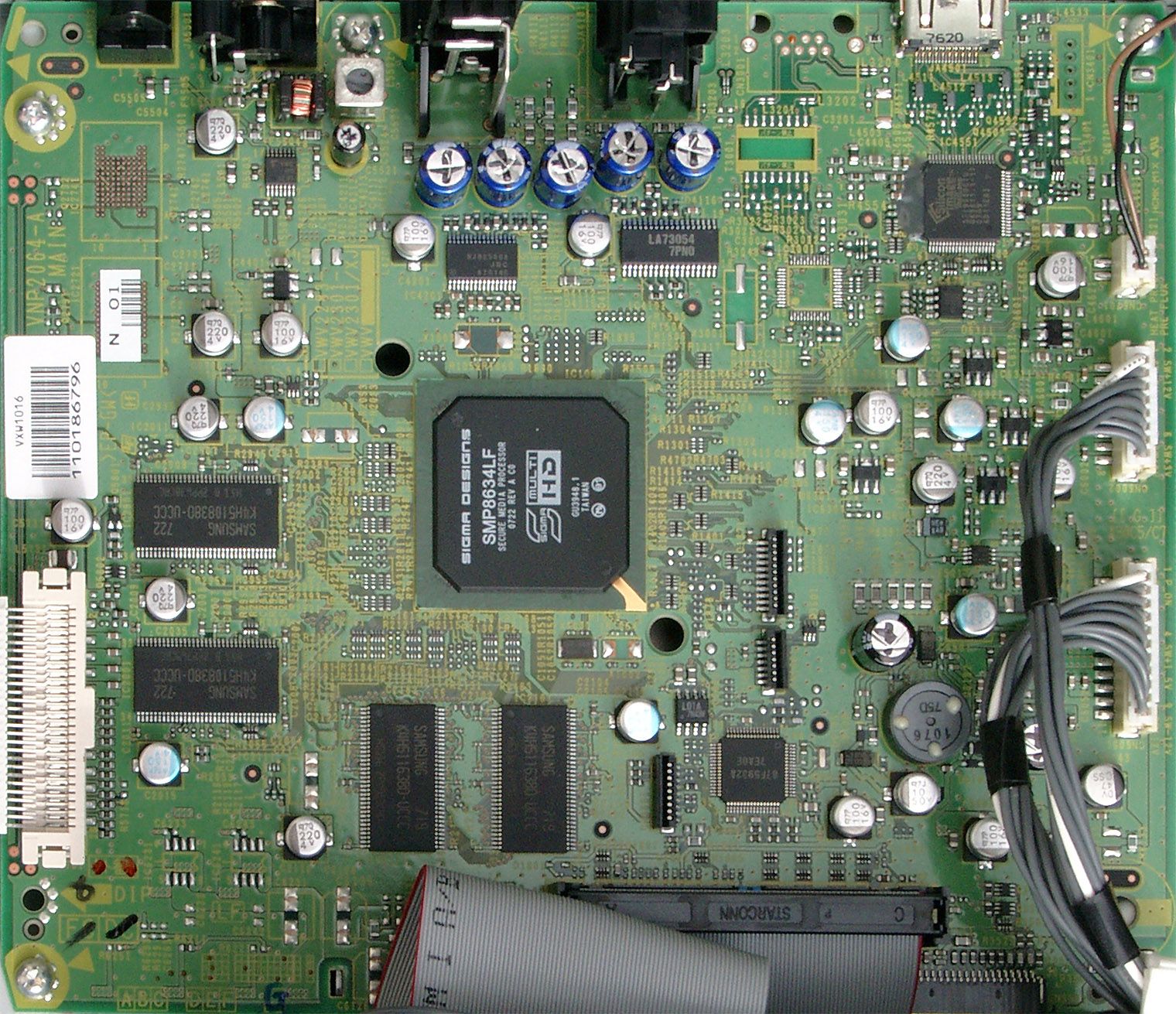

Processor board (664kB)

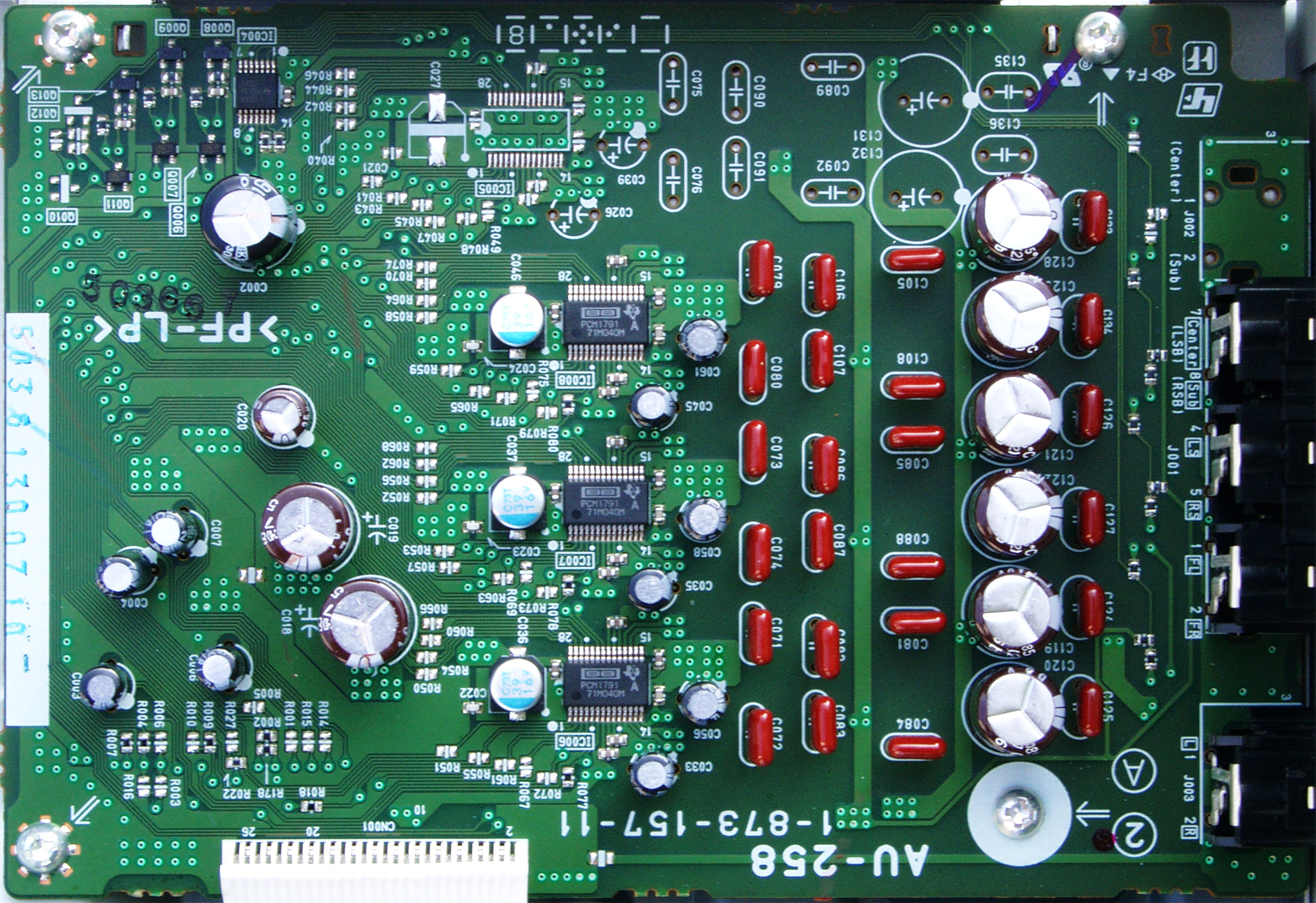

Analogous output board (1058kB)

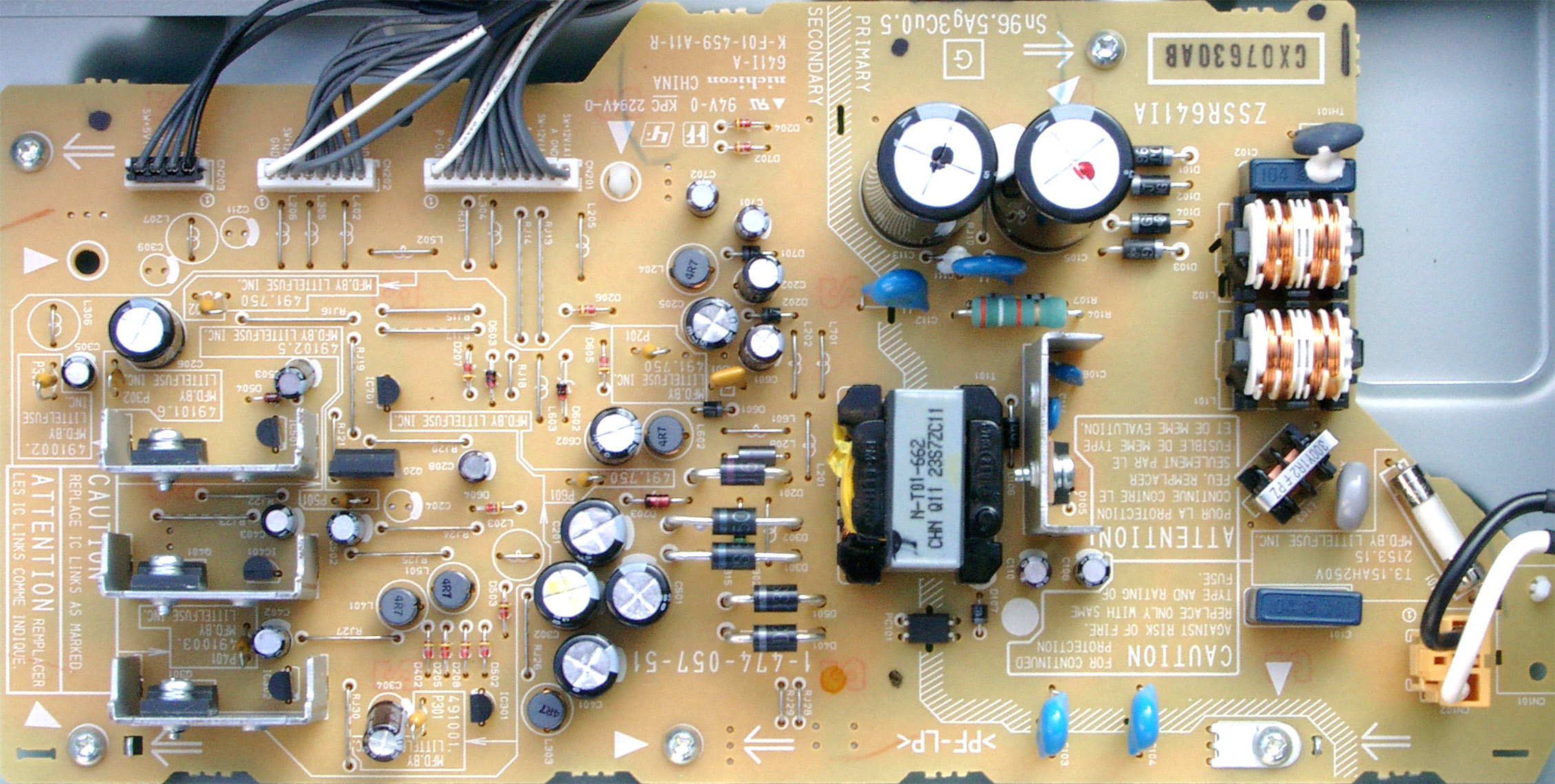

Power Supply (661kB)

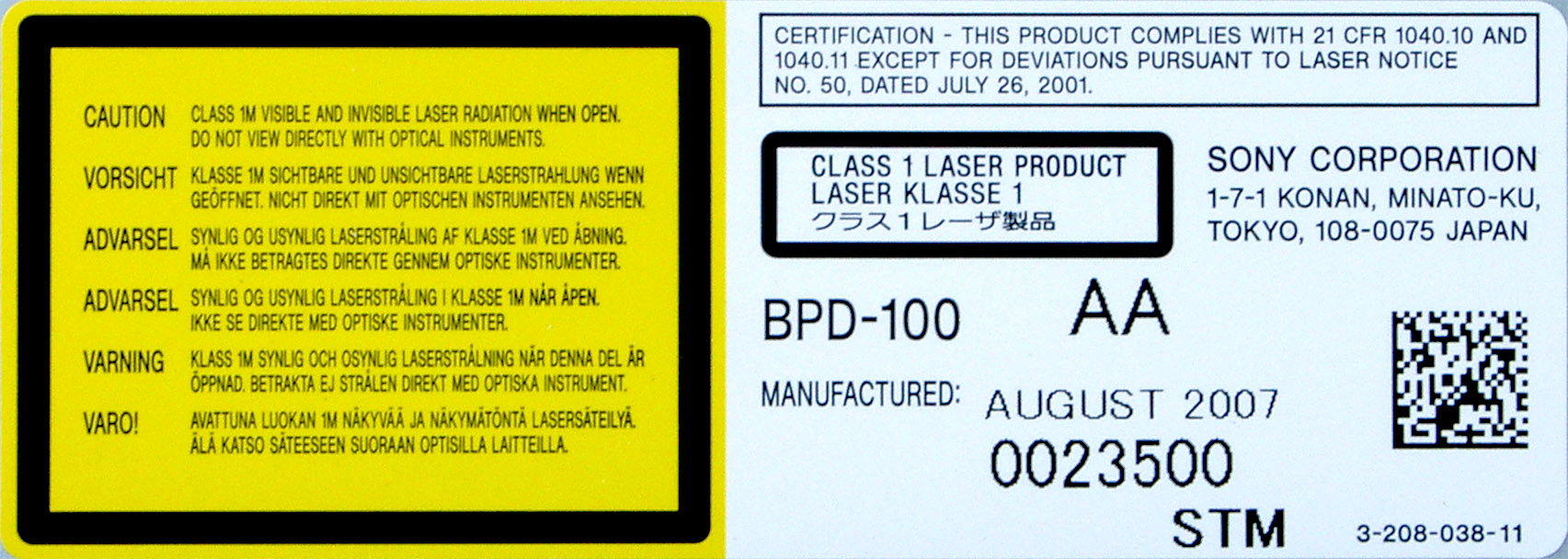

Lable of blu-ray drive (296kB)

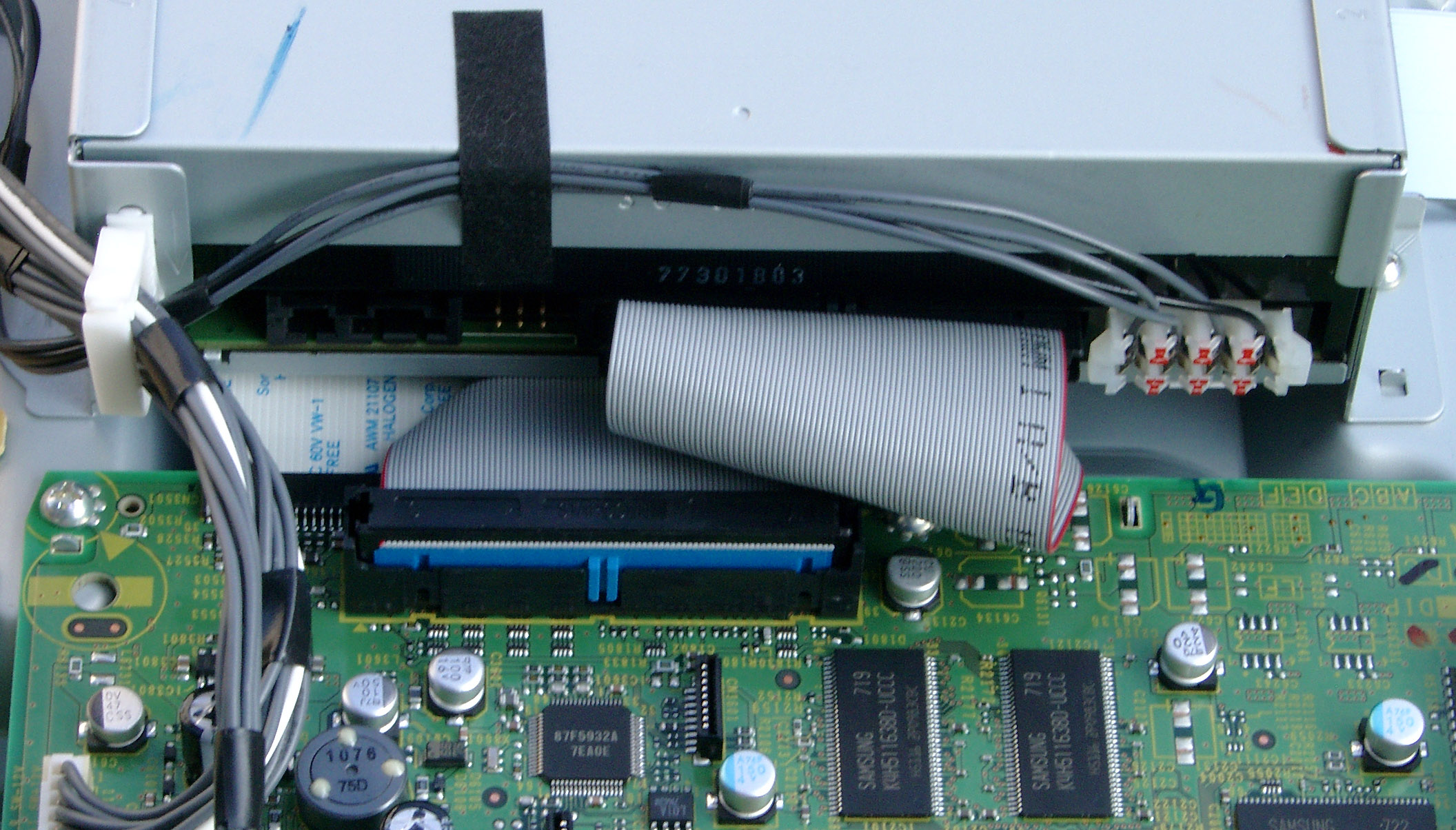

Connector of blu-ray drive (571kB)

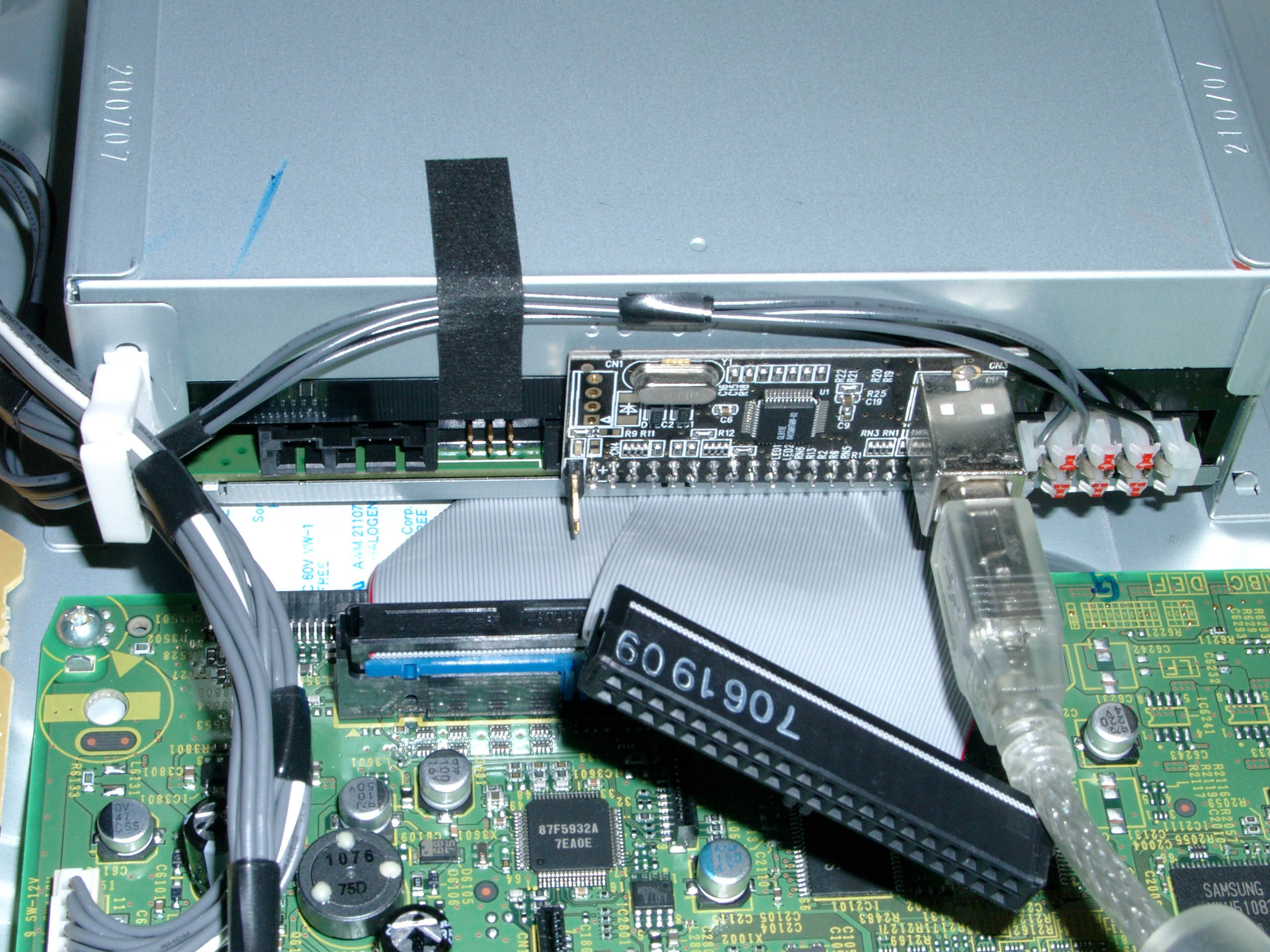

USB2.0 Connection with a PC (566kB)
The IDE cable is removed from the internal BR-drive BDP-100. Instead of the cable an IDE/USB converter is pluged in, and connected with a PC. Without any special software WinXP accepts the drive as a standard DVD-drive.
